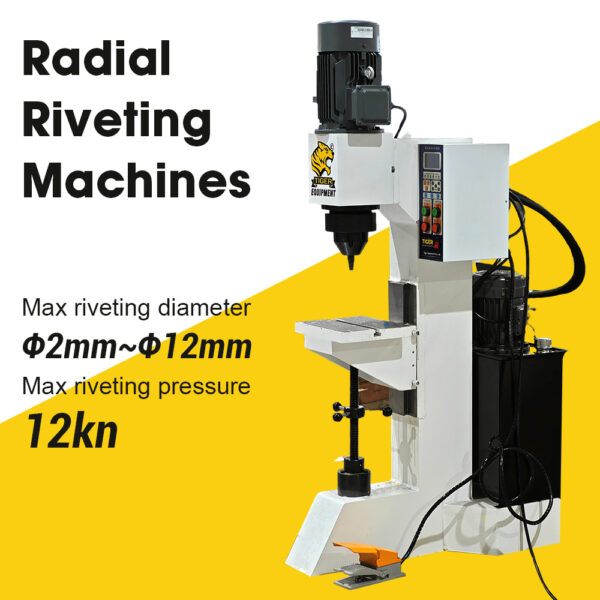

Hydraulic Radial Riveting Machine 12 KN 2mm-9mm Spin Riveting Machine

Suitable for connecting steel plates, stainless steel plates, aluminum plates, and non-metallic composites. Typical parts connected by hydraulic riveting machines include: roof windows, bumpers, exhaust pipes, fuel tanks, brake covers, car doors, instrument frames, engine mounts, engine hoods, trunk covers, coolers, seats, window regulators, mufflers, refrigerator doors, washing machine casings, fan casings, photocopier bases, computer casings, dental machine enclosures, and more.

Principle of Radial Riveting Machine (JM Series)

The motor drives the main spindle via a coupling, and the spindle in turn transmits motion to the spherical kinematic pair through a planetary gear mechanism. The high-pressure hydraulic system actuates the piston to move downward, bringing the power head into contact with the rivets. The power head then rotates along an 11-lobe plum blossom trajectory around the spindle centerline to complete the riveting process.
